0-TAMX0188 Mini Motor Gearbox 8-Speed Kit - Tamiya 70188 <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The mini-motor gearbox kit from Tamiya makes it easy to get a small robot or plastic model moving. The kit includes one motor and all the gears and parts to build any of the eight possible gear ratio configurations. The eight gear ratio options give you the flexibility to choose the best speed and torque for your project. There are two possible output axle locations (only one output location is possible for any given ratio).</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">50.3 x 18 x 20mm<br>
60mm shaft (3mm hex)<br>
Operating Voltage: 3V<br>
Ratio options: 7.5:1, 9.5:1, 15.7:1, 19.9:1, 32.9:1, 41.8:1, 79.0:1, 87.9:1<br>
No-load Speed at 3V: 8400 rmp<br>
No-load Current at 3V: 60 mA<br>
Stall Current at 3V: 600mA
</font></p>

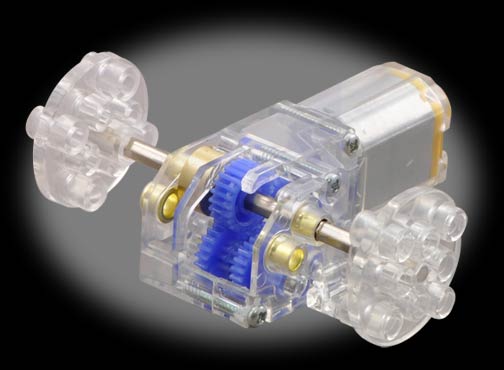

Mini Motor Gearbox 8-Speed Kit - Tamiya 70188
The mini-motor gearbox kit from Tamiya makes it easy to get a small robot or plastic model moving.

$12.99
Robot MarketPlace - Mini Motor Gearbox 8-Speed Kit - Tamiya 70188

Motors
    Small Geared Motors


Click photo to enlarge.

Mini Motor Gearbox 8-Speed Kit - Tamiya 70188
Part# 0-TAMX0188


No reviews yet.

Retail: $15.00

Our Price:

$12.99

QTY
Stock Status: In Stock
