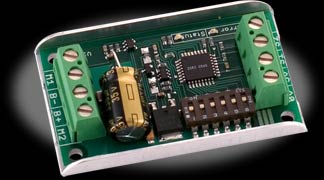

SyRen 10A Regenerative Motor Driver

The SyRen motor driver is one of the most versatile, efficient and easy to

use motor drivers on the market. It is suitable for medium powered robots -

up to 30lbs in combat or 100lbs for general purpose robotics.

Out of the box, the SyRen 10 can supply a single DC brushed motor with up

to 10A continuously. Peak currents of 15A are achievable for a few seconds.

Overcurrent and thermal protection means you'll never have to worry about

killing the driver with accidental stalls or by hooking up too big a motor.

With just one SyRen driver you can control a motor with: analog voltage, radio

control, serial and packetized serial. You can build many different robots

of increasing complexity for years to come with a SyRen. Owning two SyRens

allows you to build differential drive (tank style) robots because they can

work in tandem with built in mixing.

The operating mode is set with the onboard DIP switches so there are no jumpers

to lose. The SyRen features screw terminal connectors - making it possible

for you to build a robot without even soldering.

SyRen is the first synchronous regenerative motor driver in its class. The

regenerative topology means that your batteries get recharged whenever you

command your robot to slow down or reverse. SyRen also allows you to make very

fast stops and reverses - giving your robot a quick and nimble edge.

SyRen has a built in 5V BEC that can provide power to a microcontroller or

R/C receiver. The lithium cutoff mode allows SyRen to operate safely with lithium

ion and lithium polymer battery packs - the highest energy density batteries

available.

SyRen's transistors are switched at ultrasonic speeds (32kHz), meaning no

one will be able to hear your robot ninja army approaching.

Specifications

<tr>

<td>Voltage

range</td>

<td>6-24V

input nominal, 30V max</td>

</tr>

<tr>

<td>Current

handling </td>

<td>10A

continuous, 15A peak</td>

</tr>

<tr>

<td>1.4"

x 2.25" x 0.55"</td>

</tr>

<tr>

<td>Weight</td>

<td>0.9

oz (26g)</td>

</tr>

<tr>

<td>Input

types</td>

<td>Analog

(i.e. potentiometer), R/C input (radio receiver-no input cable included),

or serial (RS-232)</td>

</tr>

<tr>

<td>Number

of channels</td>

</tr>

<tr>

<td>Synchronous

regenerative drive</td>

</tr>

<tr>

<td>Ultra-sonic

switching frequency</td>

</tr>

<tr>

<td>Thermal

and overcurrent protection</td>

</tr>

<tr>

<td>Lithium

protection mode</td>

</tr>

</table>

SyRen 10A Regenerative Motor Driver

The SyRen motor driver is suitable for medium powered robots - up to 30lbs in combat or 100lbs for general purpose robotics.

$
49.99

The SyRen motor driver is one of the most versatile, efficient and easy to use motor drivers on the market. It is suitable for medium powered robots - up to 30lbs in combat or 100lbs for general purpose robotics.

Out of the box, the SyRen 10 can supply a single DC brushed motor with up to 10A continuously. Peak currents of 15A are achievable for a few seconds.

Overcurrent and thermal protection means you'll never have to worry about killing the driver with accidental stalls or by hooking up too big a motor.

With just one SyRen driver you can control a motor with: analog voltage, radio control, serial and packetized serial. You can build many different robots of increasing complexity for years to come with a SyRen. Owning two SyRens allows you to build differential drive (tank style) robots because they can work in tandem with built in mixing.

The operating mode is set with the onboard DIP switches so there are no jumpers to lose. The SyRen features screw terminal connectors - making it possible for you to build a robot without even soldering.

SyRen is the first synchronous regenerative motor driver in its class. The regenerative topology means that your batteries get recharged whenever you command your robot to slow down or reverse. SyRen also allows you to make very fast stops and reverses - giving your robot a quick and nimble edge.

SyRen has a built in 5V BEC that can provide power to a microcontroller or R/C receiver. The lithium cutoff mode allows SyRen to operate safely with lithium ion and lithium polymer battery packs - the highest energy density batteries available.

SyRen's transistors are switched at ultrasonic speeds (32kHz), meaning no one will be able to hear your robot ninja army approaching.

Specifications

Voltage range	6-24V input nominal, 30V max
Current handling	10A continuous, 15A peak
Size	1.4" x 2.25" x 0.55"
Weight	0.9 oz (26g)
Input types	Analog (i.e. potentiometer), R/C input (radio receiver-no input cable included), or serial (RS-232)
Number of channels	1
Synchronous regenerative drive	yes
Ultra-sonic switching frequency	yes
Thermal and overcurrent protection	yes
Lithium protection mode	Yes

Click here to add your own review or comment for this product.

5/12/2011

kevin

After purchasing this motor driver I needed some help with the wiring, the technical support and the driver have been great, Thanks robot market.

10/25/2010

JDuffPhoto

very happy with motor controller

Purchased this part on a recommendation. Installation and configuration were easy thanks to the manufacturer's website. After testing throughout the week, I worked a convention and experienced no issues.

This is driving a 12VDC motor and controls speed and direction.

11/18/2009

esworks

Bought it for an electric vehicle project using a 250W motor, it was too small, and got damaged when 15A shot thru it for a moment before the 15A fuse blew.

Maybe its the fuse I should blame, but the damage is done.

Now upgrading to a SyRen 25
