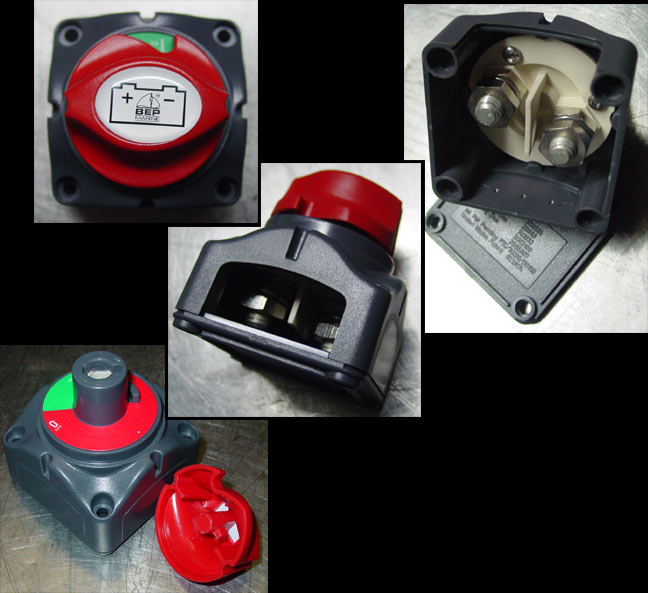

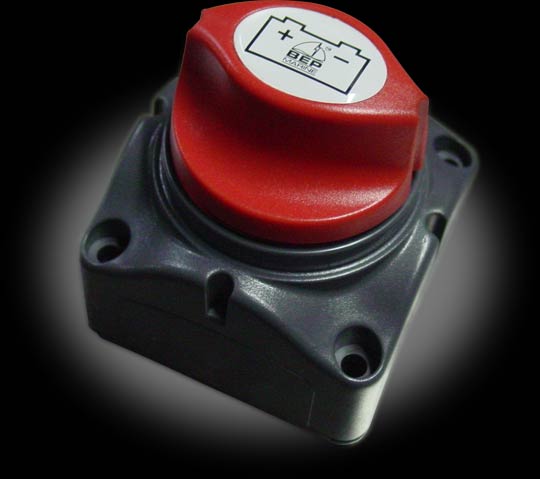

Need a bigger, heavy duty switch for your current-hungry bot? This big boy has a hard-to-miss large red knob with two positions, on and off (90 degrees to each other). The knob is non-removable when in these positions, so you don't need to fumble for special tools or a key. However, this switch features a unique setup where you can remove the knob in the OFF position, by pushing and twisting it 45 degrees CCW. This is the highest current-handling switch we carry.

- Continuous rating: 275 amps
- Surge current of over 1750 amps
- Surface or Recess mount

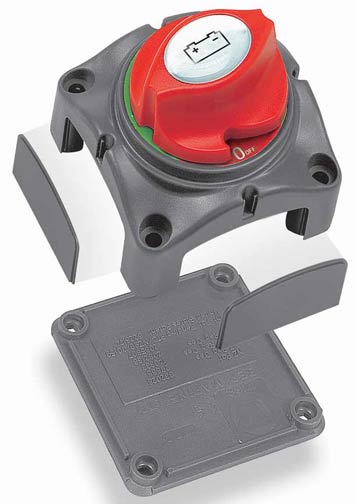

- Bring wires in from any of 4 sides, each with removable panels
- Bottom plastic panel to completely isolate all connections
- 3/8" copper terminals, silver-plated
- Assembled weight: 7 oz

Click on a thumbnail to view full size image.

Measurements

Click here to add your own review or comment for this product.
6/18/2009 Sean Brennan	Works exactly as expected We own several of these and will be buying more in the future. Works exactly as expected. Very smooth and dependable motion, easy to mount, etc. We loved that the knob was removable... made a nice safety swtich. But don't lose it!
