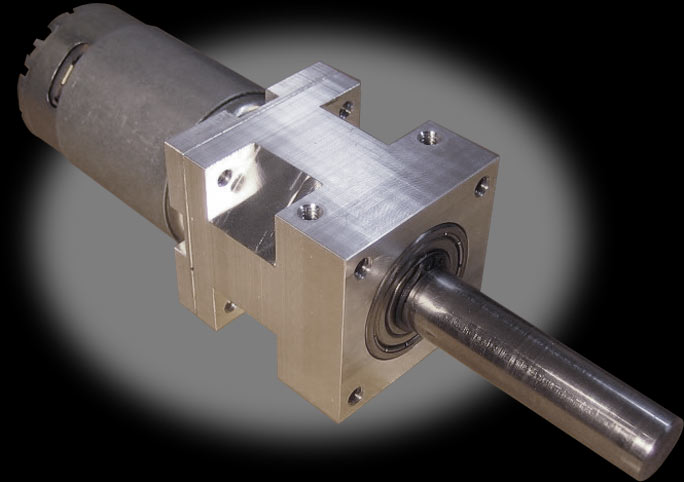

The
Piranha gearmotor is a small, lightweight motor specifically
designed for direct-to-wheel drive systems on 12-15 pound robots.
These
strong, lightweight and reliable gearboxes are priced to fit your
budget, and come fully assembled with a 550 Johnson motor. The gearbox
is compatible with all 540 and 550 sized motors, so if you want,
you could use the same gearbox with another motor of your choice!
The
1/2" diameter output shaft is supported by dual ABEC-1 ball bearings
and is keyed with a 1/8" keyway, ready for your wheel, sprocket,
pulley, etc.
Mounting
holes are pre-drilled on top and bottom of the gearbox with 8-32
thread.
| Speed |
38
rpm/v (456rpm @12V) |
| Voltage |
12-18 Volts |
| Gear
ratio |
36:1 |
| Weight |
1.5
lbs (as pictured, with motor) |
| Output
Shaft |
1/2" with
1/8" keyway; 1.5". long |
| Height |
1.6" |
| Width |
1.6" |
| Length |
6.4" (overall
with motor) |
| Mount |
8-32
holes 1.25" x 1" |
Drawing
