Sanyo 75:1 Micro Geared Motor
Part# 0-MICROM2

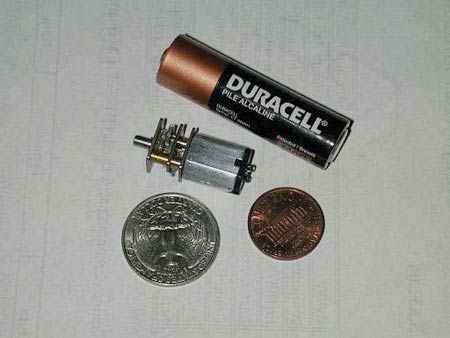

This is truly the smallest gearmotor we've found, and it is top quality.

High quality all-metal gears with your choice of a very torquey 196.6:1 gear ratio, a faster, but less torquey, 75.7:1 ratio, or for high speed applications, the 50:1 model.

The entire motor with gears weighs only .3 ounces!  They are rated for 5.0V DC, but we have tested and run them at 9.0V, even up to 12V. Many tires/wheels can be directly mounted to the 3 mm diameter output shaft.

Please note that the shaft lenghts are different on these models. The 50:1 comes with a longer, 12mm long shaft, while the 75:1 comes with a stuybby 5mm shaft.

With these motors we will see a new evolution of tiny bots. YES, the prop adapter and aluminum hubs we sell will fit on these motors!


Specifications at 4.5V: 75:1 - NA1S
No load speed 246 rpm
No load current 120 mA
Starting torque 800 gf-cm
True gear ratio 75.7:1
Size 0.47" x 0.39" x 1.14"
Shaft 3mm D-style 5mm long
Weight 8.2 grams (0.29 oz)
Starting current 650 mA +/- 30%
