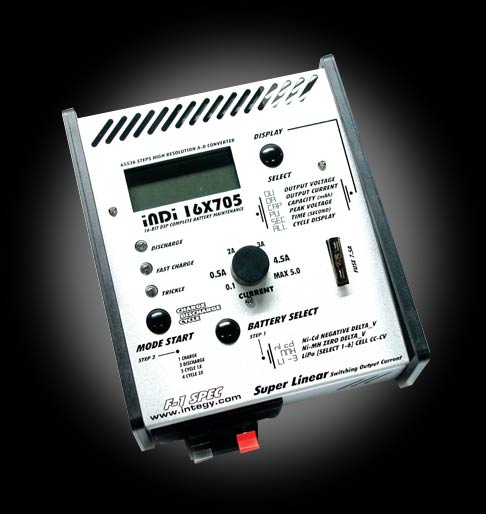

LCD Display shows voltage, current, capacity in mAh, peak voltage & time,
0.1A to 5.0A selectable output current, discharge batteries with auto cutoff,
up to 3.0A discharge current, user selectable cycles 1 or 3 times, internal
dual voltage monitoring, built-in cooling fan, very easy to use and compact,
true CC-CV linear charge output, LED lights indicate charge status, 1-year
limited manufacturer warranty
Compatible
with:
NiCad/NiMh packs 1-14 cells (1.2 - 16.8V) from 0.1 to 5.0 Amps.
LiPoly packs 1-6 cells (3.6 - 21.6v) from 0.1 to 5.0 amps.
Dimensions:
5.5" x 4.6" x 2.3"
AC Input: 110-120VAC
DC Input: 11-15V DC
Includes:
charger, AC adapter, charge lead with Kyosho adapter, detachable alligator
clips for 12V DC power option.
Note: This
charger is compatible both with standard houshold AC power, or you can use
a 12V Power
Supply or
Battery to supply main power input.
|
