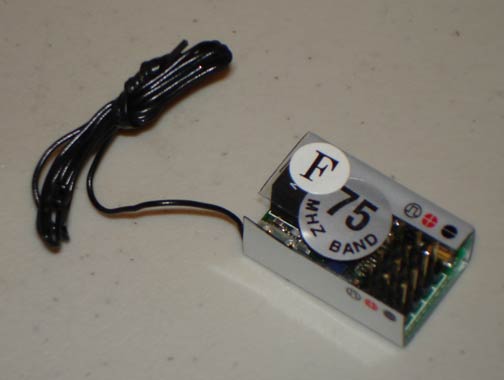

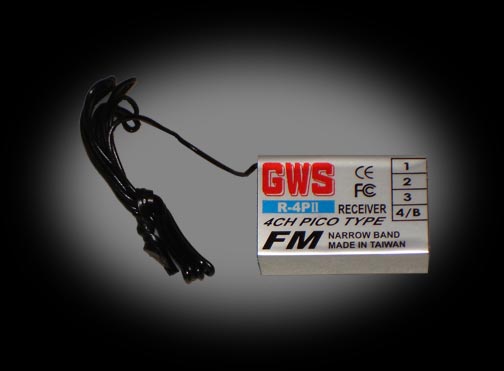

GWS 75Mhz 4-Channel Pico Receiver - Vertical Pins, Futaba style
Part# 0-GWR4PII75F
This
is the very tiny GWS 75Mhz 4-channel receiver that is taking the small combat robot
world by storm. Tiny and very lightweight at only 4.4 grams! Also
tested in many combat robots and is extremely shock-resistant. Futaba negative shift style.
Specifications:
| Channels |
4 |
| Size |
15 x 25 x 9.5
mm |
| Weight |
4.4 grams
(0.16
oz) |
| Antenna
Length |
50cm |
| Voltage
Range |
3.6 - 7.2 volts |
| Operating
Range |
150
meters |
| Modulation |
FM
(PPM) single conversion |
| Connector |
standard
3-pin (universal PWM) |
| Compatible
Radio System |
All
75Mhz GWS Radios |
| Compatible
Crystals |
|
|
| |
|
|
