Robot MarketPlace - Great Planes Matt Chapman Eagle 580 EP 50in. ARF

0-GPMA1573

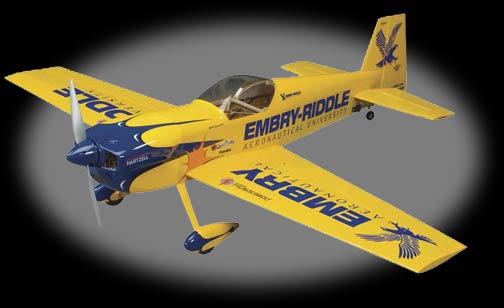

Great Planes Matt Chapman Eagle 580 EP 50in. ARF

</div>Matt Chapman's famous Eagle 580 Unlimited Class aerobat now rules the R/C flying field as a 50" span electric! State-of-the-art construction and prefabrication have resulted in an Almost-Ready-to-Fly thrill-seeker that stands out from the rest -- in both looks AND performance!

Features

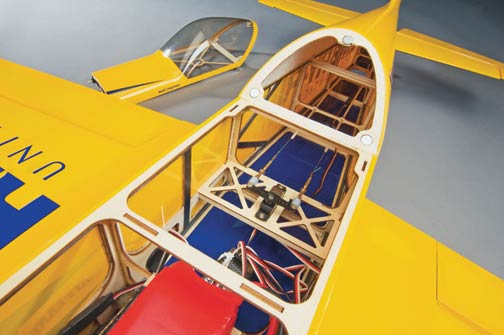

Construction: Balsa and ply with airfoiled control surfaces, motor box preinstalled with blind nuts providing perfect spacing for spinner backplate-no need for measuring, cowl ring also preinstalled

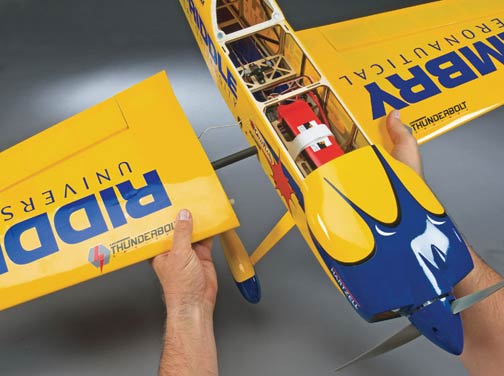

Wings: Two piece with carbon fiber wing joiner

Covering: Top Flite MonoKote

Aileron Control: Dual servo

Cowl: Prepainted fiberglass

Canopy: Single, one-piece provides access to battery compartment and attaches with magnets

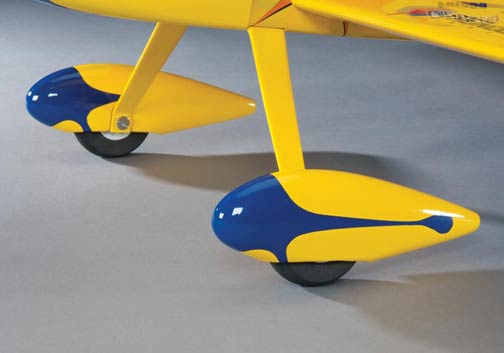

Wheel Pants: Prepainted fiberglass

Landing Gear: Painted aluminum

Wheels: Main-two foam 2.5" (63mm) diameter, tailwheel 0.87" (22mm) diameter

Decals: Die-cut, Embry-Riddle Eagle 580 color scheme

Spinner: Plastic, blue in color 2.25" (57mm) diameter

Hardware: Full set included

Building Time: Approximately 6-8 hours

Includes

ElectriFly ARF Matt Chapman Eagle 580 Airplane with fiberglass cowl

Wheel pants and landing gear

Wheels

Hardware

Photo-illustrated instruction manual

<tr>

<td colspan="4">Specs</td>

</tr>

<tr>

<td colspan="2">Wingspan</td>

</tr>

<tr>

</tr>

<tr>

<td colspan="2">Weight</td>

</tr>

<tr>

<td colspan="2">Airfoil</td>

<td colspan="2">Fully symmetrical, low wing placement </td>

</tr>

<tr>

<td colspan="2">Wing Loading </td>

</tr>

<tr>

<td colspan="2">Length</td>

</tr>

<tr>

<td colspan="4">Control Throws </td>

</tr>

<tr>

</tr>

<tr>

<td>Elevator</td>

</tr>

<tr>

<td>Rudder</td>

</tr>

<tr>

<td>Ailerons</td>

</tr>

</table>

Needed to Complete

4-Channel Radio

4 Micro Servos with 38 oz/in or more torque

Y-harness

Extensions: Two 24in., two 12in., one 6in.

Brushless Motor

45A ESC

2200mAh LiPo Battery

LiPo compatible Charget

13 x 8E Propeller

Great Planes Matt Chapman Eagle 580 EP 50in. ARF

State-of-the-art construction and prefabrication have resulted in an Almost-Ready-to-Fly thrill-seeker that stands out from the rest -- in both looks AND performance!

$
149.00

ElectriFly Matt Chapman Eagle 580 - The Hobby MarketPlace

Matt Chapman's famous Eagle 580 Unlimited Class aerobat now rules the R/C flying field as a 50" span electric! State-of-the-art construction and prefabrication have resulted in an Almost-Ready-to-Fly thrill-seeker that stands out from the rest -- in both looks AND performance!

Features
Construction: Balsa and ply with airfoiled control surfaces, motor box preinstalled with blind nuts providing perfect spacing for spinner backplate-no need for measuring, cowl ring also preinstalled
Wings: Two piece with carbon fiber wing joiner
Covering: Top Flite MonoKote
Aileron Control: Dual servo
Cowl: Prepainted fiberglass
Canopy: Single, one-piece provides access to battery compartment and attaches with magnets
Wheel Pants: Prepainted fiberglass
Landing Gear: Painted aluminum
Wheels: Main-two foam 2.5" (63mm) diameter, tailwheel 0.87" (22mm) diameter
Decals: Die-cut, Embry-Riddle Eagle 580 color scheme
Spinner: Plastic, blue in color 2.25" (57mm) diameter
Hardware: Full set included
Building Time: Approximately 6-8 hours

Includes
ElectriFly ARF Matt Chapman Eagle 580 Airplane with fiberglass cowl
Wheel pants and landing gear
Wheels
Hardware
Photo-illustrated instruction manual

Specs
Wingspan		50in.
Wing Area		494 sq. in.
Weight		3.25 - 3.5 lbs.
Airfoil		Fully symmetrical, low wing placement
Wing Loading		15-16 oz/sq. ft.
Length		47.75in.
Control Throws
	Low Rate	High Rate	3D
Elevator	3/4in. (19mm) 12�	1in. (25mm) 17°	2-3/4in. (70mm) 52°
Rudder	1in. (25mm) 10°	1-1/2in. (38mm) 15°	4in. (102mm) 44°
Ailerons	3/8in. (10mm) 7°	5/8in. (19mm) 13°	1-1/2in. (38mm) 31°

Needed to Complete
4-Channel Radio
4 Micro Servos with 38 oz/in or more torque
Y-harness
Extensions: Two 24in., two 12in., one 6in.
Brushless Motor
45A ESC
2200mAh LiPo Battery
LiPo compatible Charget
13 x 8E Propeller
