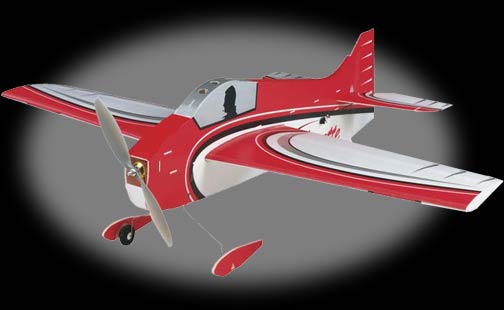

Great Planes Silhouette 3D EP ARF 40in.
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Practical yet versatile, the ElectriFly Silhouette ARF offers pilots the best of both possible worlds. Beginners and seasoned pros alike will appreciate how easy it is to assemble as well as how much fun it is to fly. The ultra-light Pro-Formance foam wing and fuselage helps flyers transition from simple maneuvers to exciting 3D aerobatics!</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Construction: Pro-Formance Foam, an ElectriFly exclusive<br>
Wings: One-piece<br>
Aileron Control: Dual servo<br>
Landing Gear: 0.08" (2mm) diameter wire with wire tail skid<br>
Wheels: Two foam, 1.5" (38mm) diameter<br>
Hardware: Carbon fiber pushrods and prebent Z-bends for simple servo installation<br>
Building Time: Ready to fly in 2-3 hours
</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="4"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Wingspan</font></td>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">40in.</font></td>
</tr>
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Wing Area </font></td>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">406 sq. in. </font></td>
</tr>
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">41in. </font></td>
</tr>
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">14.5-16.0 oz. </font></td>
</tr>
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Wing Loading </font></td>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5.2-5.7 oz./sq. ft. </font></td>
</tr>
<tr>
<td><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Control Throws</font></td>
<td><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Low Rate </font></td>
<td><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">High Rate </font></td>
<td><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">3D Rate </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Elevator</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1in. 17°</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1-3/8in. 24° </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1-3/4in. 31° </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Rudder</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2-3/8in. 24°</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3-1/2in. 37° </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4-1/2in. 52° </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Ailerons</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3/4in. 12° </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1in. 16° </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1-1/4in. 20° </font></td>
</tr>
</table>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Needed to Complete</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Radio: 4 channel<br>
Servos: Four micro high torque (1-rudder, 1-elevator, 2-aileron)<br>
6" (152mm) Y-Harness<br>
Two 6" (150mm) Slim Wire Servo Extensions<br>
Two 12" (300mm) Slim Wire Servo Extensions<br>
Battery Charger: LiPo compatible<br>
Motor: Rimfire Outrunner Brushless<br>
ESC: 12A Silver Series For Brushless Motors<br>
Battery: Power Series 11.1 volt 640mAh 15C LiPo battery<br>
Propeller: 11x3.8 Slo-Flyer <br>
Building & field equipment </font></p>
$
Manual
