0-GM22 298:1 Mini Metal Sealed Gear Motor <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The GM22 mini metal sealed gear motor is the same form-factor of its siblings, but it has far more torque - almost twice as much as the <a href="0-GM14A.html">GM14a</a> at 3V! Did we mention it also has a sealed gearbox? </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Offering 35.2 oz-in (2534 g-cm) of torque at 3V, it's a real finger twister - ideal for high-torque solar-powered (or 2AA) applications. And with a sealed gearbox, it makes it ideal for building Turbot tumbling robots, which usually stir up all sorts of dust and grime.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Gear Ratio </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">298:1</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Unloaded RPM (3V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">39</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Unloaded RPM (6V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">79</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Unloaded Current (3V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">44 mA </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Unloaded Current (6V)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">64 mA </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Current (3V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">608 mA </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Current (6V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">948 mA </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Torque (3V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">35.20 oz-in (2534 g-cm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Torque (6V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">47.80 oz-in (3442 g-cm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.27 in (32.20mm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.55 in (14.00mm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.55 in (14.00mm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Size </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3mm D, 0.39&quot; (10mm) long</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.39 oz (11.10g)</font></td>
</tr>
</table>

298:1 Mini Metal Sealed Gear Motor
With almost twice the torque of the 298:1 Gear Motor, the 298:1 Mini Sealed Metal Gear Motor is the most compact torque monster we have!

$18.99
Robot MarketPlace - 298:1 Mini Metal Sealed Gear Motor

Motors
    Small Geared Motors

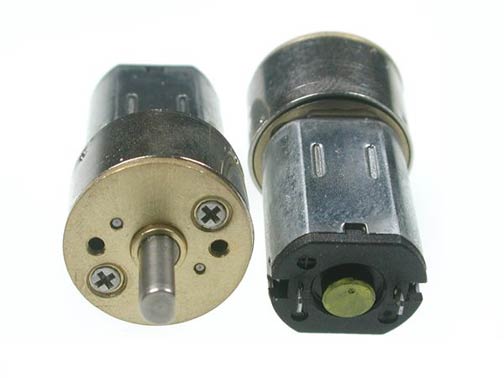

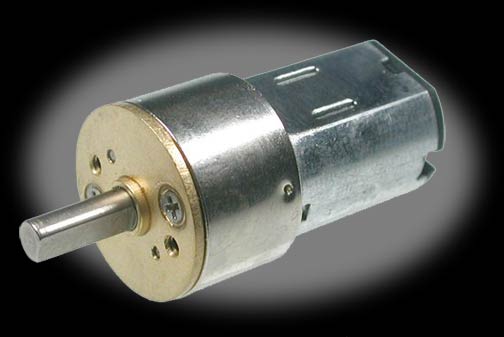

Click photo to enlarge.

298:1 Mini Metal Sealed Gear Motor
Part# 0-GM22



(average customer rating)

$18.99
QTY
Stock Status: In Stock
