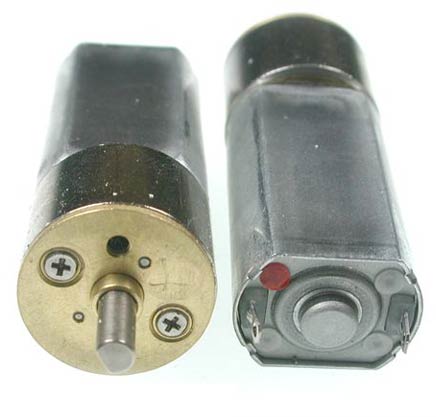

0-GM21 360:1 Mini Metal Sealed Gear Motor <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The 360:1 Mini Metal Gear Motor looks much like our other mini metal gear motors, except the motor is longer. And the gearing is in an enclosed cylindrical casing! These also have a beefier set of mounting holes, threaded for 2-M1.6 metric screws. 3mm shaft. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Even more interesting are the motor characteristics. This compact brute of a gear motor offers a measured stall torque of 103.2 in-oz (7434 gm-cm) at 6V - that's considerable! Of course, with something this small, we trade the increase in torque for a decrease in speed - it's among the slowest spinning motors we carry, turning at a lazy 23RPM at 6V.</font></p>

<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Gear Ratio </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">360.00:1</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Unloaded RPM (3V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">11</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Unloaded RPM (6V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">23</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Unloaded Current (3V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">38 mA </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Unloaded Current (6V)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">42 mA </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Current (3V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">360 mA </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Current (6V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">692 mA </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Torque (3V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">49.60 oz-in (3571 g-cm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Torque (6V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">103.20 oz-in (7431 g-cm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.875&quot; (47.60mm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.61&quot; (15.50mm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.61&quot; (15.50mm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.94 oz (26.60g)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3mm diameter, 10mm long</font></td>
</tr>
</table>

360:1 Mini Metal Sealed Gear Motor
This long-motored 360:1 Mini Metal Gear Motor is a torquey, compact brute!

$18.99
Robot MarketPlace - 360:1 Mini Metal Sealed Gear Motor

Motors
    Small Geared Motors


Click photo to enlarge.

360:1 Mini Metal Sealed Gear Motor
Part# 0-GM21



(average customer rating)

$18.99
QTY
Stock Status: In Stock
