Futaba 6EX Manual:

ATTENTION ROBOT BUILDERS: The receiver that comes with this radio does NOT failsafe on any channel but the throttle channel. Please check the rules of your competition to see what the regulations are on failsafing. We are currently looking into a solution. Our DX6i with the BR6000 receiver will perform this function with no modifications.

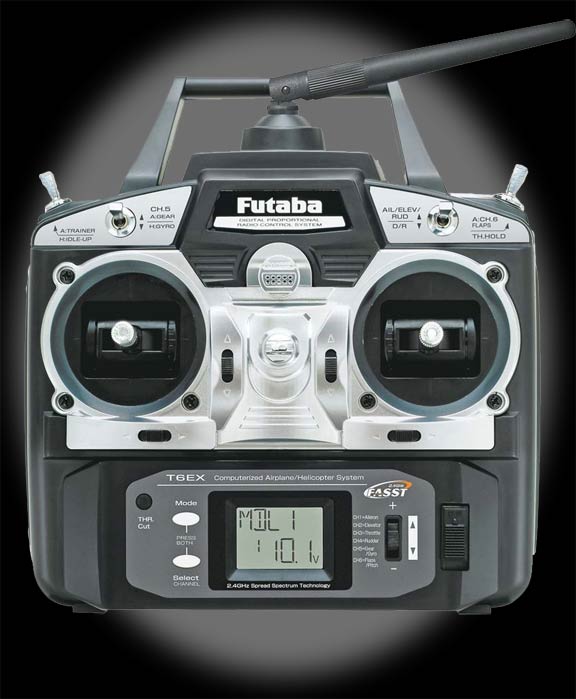

Futaba 6EX 6-Channel 2.4GHz Radio System
Part# 0-FUTK6900

Futaba's FASST (Futaba Advanced Spread Spectrum Technology) shifts very quickly virtually eliminating signal conficts and interruptions unlike other 2.4GHz systems that only stay on one or two frequencies.

The 2.4Ghz frequency makes this a great choice for either air or surface use.

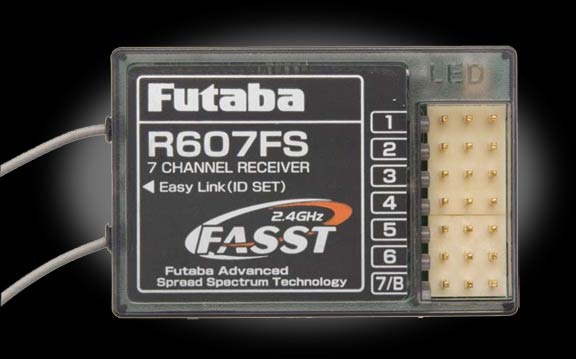

R607FS high sensitivity receiver weighs only 0.25oz (7g) without case yet is a full range system for all aircraft from giant scale to Park Flyer applications-no need to buy separate receiver for specific aircraft, rubber grommets installed where antennas exit to eliminate stress and fraying of the wires.

Dual antenna diversity enables FASST system to automatically and seamlessly select the best reception between the two antennas built into the receiver ensuring that the aircraft stays under constant control of transmitter regardless of altitude.

Pre-Vision Packet Screening technology scans incoming data for potential problems and applies sophisticated error correction techniques for solid impenetrable link with model.

Easy Link system features a unique ID code in the transmitter that links to the receiver insuring that receiver only follows commands from this transmitter-with over 134 million possible codes there is no chance for a conflict.

No hassle Fail Safe programmed through transmitter-no complicated set-up steps or binding plugs.

When performing a ground check, the Power Down function allows modeler to reduce power from up to 50+ paces away-like retracting the antenna on a conventional transmitter.

Purpose built custom IC chips for key functions; no off-the-shelf IC chips.

Standard Programming Features
Trainer function-transmitter can be master or student, compatible with other Futaba systems
Six model memory
Servo reversing
End point adjustment
Airplane or heli programming
Dual Rate /Exponential for ailerons, rudder and elevator
Fail Safe-safety throttle setting in case of transmitter signal loss
Battery Fail Safe-safety throttle setting in case of signal loss
Stick Mode-Choose from Mode 1-Mode-4
Changeable Throttle Stick-ratchet for airplanes or smooth for helis
Adjustable Stick Length

Airplane Features
Programmable Mixing (1 & 2) any two channels can be combined
Pre-Programmed Throttle Cut for safely shutting engine OFF
Wing mixing for flaperon, flap trim, V-tail and elevon

Helicopter Functions
Three swashplate types
Five-Point Normal and Idle Up Throttle/Pitch Curves
Revo, Gyro and Swash to Throttle mixing
Swash AFR Adjustable Function Rate for use w/ 3S or 3E swash types

Includes
Futaba 6EX Transmitter
NT8F600B 9.6V 600mAh Transmitter Battery
FBC-19B(4) Battery Charger
R607FS Receiver
Switch Harness-J Style Connector
Neck Strap
One -year limited warranty
