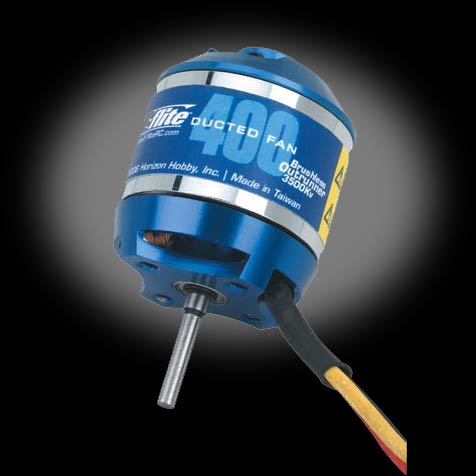

0-EFLM1320DF2 EFL-400-3500 400BL Ducted Fan Outrunner Motor (Twin Pack) <p><font face="Arial, Helvetica, sans-serif"><font color="#00FF66" size="2">The great performance and small size of the E-Flite 400BL ducted fan motor make it a perfect match for single and multi-ducted fan models. The High RPM per volt design allows for high RPM capability on most 66mm fan units.</font></font></p>
<table width="325" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td width="136"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td width="183"><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Brushless</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">400</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Bearins or Brushings </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Bearings</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Recommended Prop Range </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">66mm fan unit (3 blade) </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Voltage</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">10-12</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">RPM/Volt (Kv) </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">3500</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Resistance</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">0.065 ohms </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Idle Current</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">1.60 at 10V </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">0.09 (2.3mm)</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Overall Length </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">1.2 in (31mm) </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">56g (2.0 oz) each </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Overall Diameter </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">1.00 in (25mm) </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Continuous Current </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">19A</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Maximum Burst Current </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">23A</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Cells</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">3S LiPoly or 6-10 NiCad/NiMh </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Speed Control </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">20A Brushless </font></div></td>
</tr>
</table>
<font color="#00FF66"><font face="Arial, Helvetica, sans-serif">
</font><br>
<font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Needed to Complete</font>
<br>
<table width="325" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">3S LiPoly or 6-10 NiCad/NiMh (2) </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">20A Brushless ESC (2) </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">66mm 3 bladed Ducted fan unit (2) </font></td>
</tr>
</table>
