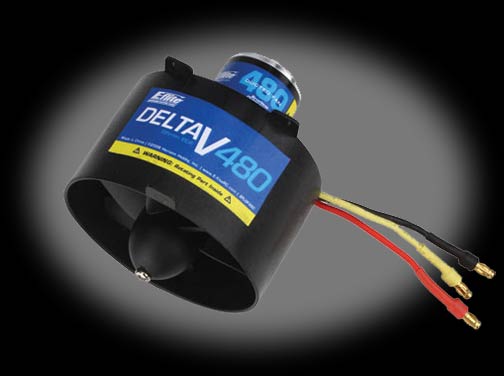

0-EFLDF480 EFL-480-4000 Delta-V 480 65mm EDF System, 4000Kv <p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Includes 65mm Fan Unit with installed BL480 Ducted Fan outrunner motor<br>
Ideal 4S upgrade option for E-flite's F-15 Eagle<br>
High-performance, efficient design EDF<br>
Injection molded, fiberglass-filled nylon<br>
Factory-balanced 65mm 6-blade rotor design<br>
Designed for 3S-4S Li-Po batteries</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Performance Data</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Data measured using included BL480 DF Brushless Motor <br>
Static Thrust: .9 lb on 3S (11.1V); 1.8 lb on 4S (14.8V)<br>
RPM: 39,000 on 3S (11.1V); 49,000 on 4S (14.8V)<br>
Watts: 255 on 3S (11.1V); 590 on 4S (14.8V)<br>
Current: 25A on 3S (11.1V); 43A on 4S (14.8V) </font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">BL480 DF Motor Specifications</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Mounting Diameter: 20mm (.70 in)<br>
Overall Diameter: 28mm (1.10 in)<br>
Case Length: 53.2mm (2.10 in)<br>
Weight: 82 g (2.9 oz)<br>
Shaft Diameter: 3mm (.12 in)<br>
Kv: 4000 (rpms per volt)<br>
Io: 4.2A @ 10V (no load current)<br>
Ri: .027 ohms (resistance)<br>
Continuous Current: 35A<br>
Max Burst Current: 45A (15 sec) <br>
Input Watts: 600<br>
Cells: 3S-4S Li-Po or<br>
10-14 Ni-MH/Ni-Cd<br>
Brushless ESC: 40A - 60A </font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">EDF Specifications</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Rotor Diameter: 65mm (2.5 in)<br>
Shroud Outer Diameter: 68mm (2.7 in)<br>
Shroud Length: 42mm (1.65 in)<br>
Weight: 30 g (1.05 oz)</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Overall Weight (Motor &amp; EDF): 112g (3.95 oz)</font></p>
