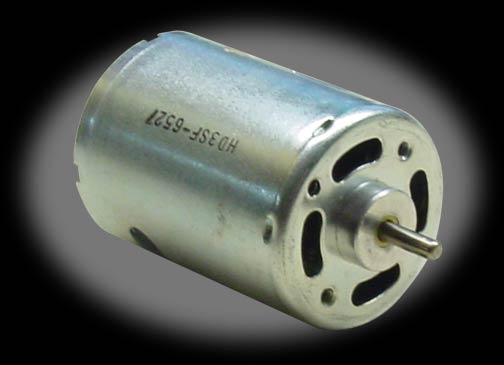

0-CRXC0540 Crest RS-540 Cermag Motor <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Permanent magnets, bushings, fixed timing, sturdy metal case and reversible perma-tension brushes make up this RS-540 motor.
</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Includes</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
One motor with 4in. leads<br />
One motor mount<br />
Mounting screws</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Voltage Range </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.8-12V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Nominal Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7.2V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Normal Load </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.47 oz-in. (250 g-cm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No Load RPM </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">15000</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Nominal Load RPM </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">13000</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Nominal Load Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7.5A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Diameter</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">--</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">--</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3mm (0.1248 in.) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Length </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">--</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7 oz</font></td>
</tr>
</table>
