$26.99
$23.99 |
|
|
Stock Status:
In Stock |
|
| |
|
Alt View:
Motor

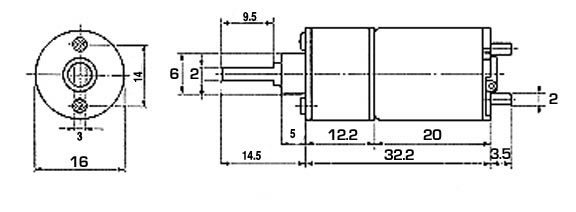

Measurements:
|
|
|

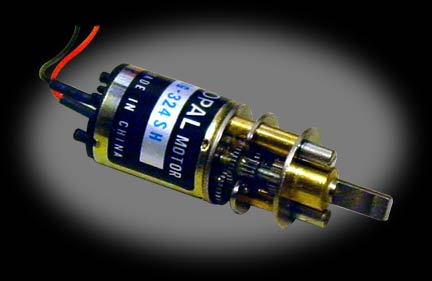

COPAL SH50 50:1 Gearmotor
Part# 0-COPAL50-SH
| This
little motor takes the Copal line another step further with its all-metal
gears at a ratio of 50 to 1. We've tested this motor extensively,
and were extremely impressed at it's performance.
Note
that this motor's gearbox is exposed, so it's best for use in a bot
where it is enclosed. If you need to, you could wrap a layer of thin
CF or foil around the gearbox if you're worried about grit getting
inside. Prewired with about 4in. long leads.
| Voltage: |
4.8-14.8V |
| Output Speed: |
500rpm
@ 12V
280rpm
@ 6V |
| Stall Torque: |
58.9
oz-in @ 12V
48.43 oz-in @ 6V |
| Size: |
1.46" long,
5/8" diameter |
| Weight: |
0.8oz |
| Gear Ratio: |
Metal
Spur gear 50:1 |
| Stall Current: |
Stall at 1.5a |
| Shaft Info: |
4
x 2mm flat diameter; 9.5mm long |
|
| |
|
|
