0-COPAL50-6 COPAL 50:1 Gearmotor - 6V <font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This
little motor takes the Copal line another step further with its all-metal
gears at a ratio of 50 to 1. We've tested this motor extensively,
and were extremely impressed at it's performance.</font><font color="00ff66"></p>
</font><p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">There
are now TWO different versions of this motor- one with a 6V motor,
and one with a 12V motor. Since we know many builders will opt to
overvolt these motors anyway to 12+ volts, we had Copal develop a new
6V version of this motor, just for the Robot MarketPlace! Both motor
models have wire leads soldered onto the back. Check
out the stats below. </font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Note
that this motor's gearbox is exposed, so it's best for use in a bot
where it is enclosed. If you need to, you could wrap a layer of thin
CF or foil around the gearbox if you're worried about grit getting
inside, or better yet, check out our <a href="0-C50MNT.html">Lexan
Mounts</a> made just for this
motor, which also keep the gearbox enclosed.</font></p>
<table width="100%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Voltage:</font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.8-14.8V</font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Output Speed:</font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">500rpm
@ 12V</font><font color="00ff66"><br>
<font size="2" face="Arial, Helvetica, sans-serif">280rpm
@ 6V</font></font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Torque: </font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">58.9
oz-in (4241 g-cm) @ 12V<br>
48.43 oz-in (3487 g-cm) @ 6V </font></div></td>
</tr>
<tr>

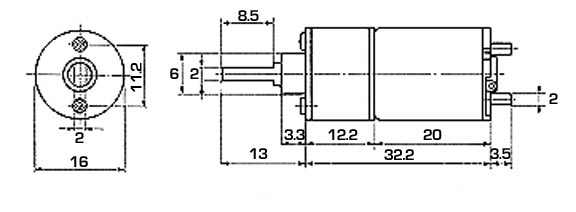

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size:</font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.3&quot; (32.2mm) long,
5/8&quot; (16mm) diameter</font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight:</font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.71oz (20.1g) </font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Gear Ratio:</font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Metal
Spur gear 50:1</font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Current: </font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall at 1.5a</font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Info: </font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4mm D Shaft with 1 flat</font></div></td>
</tr>
</table>

COPAL 50:1 Gearmotor - 6V
Small, yet quite powerful. Metal gears and a 6V motor.

$26.99
Robot MarketPlace - COPAL 50:1 Gearmotor - 6V

Motors
    Small Geared Motors


Click photo to enlarge.

COPAL 50:1 Gearmotor - 6V
Part# 0-COPAL50-6



(average customer rating)

$26.99
QTY
Stock Status: Limited Quantities
