For
applications when our B-Series Beetle motors aren't quite enough,
move up to the next larger version! These beefy motors are perfect
for many applications.
These
PK-Series motors are great for directly-driving wheels on small robots
(5-12 pounds), and are available with two different gear ratios.
Choose from either a high speed 27:1 or a high torque 51:1
| |

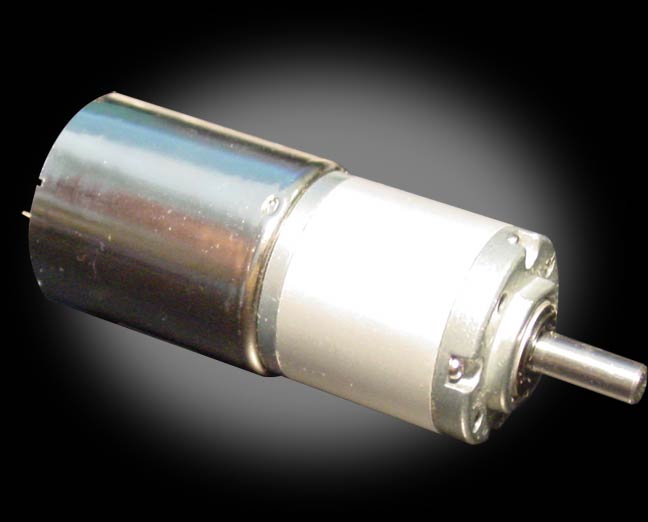

PK51
model |
6V |
12V |
| No
load speed |
|
190
rpm |
| Amps
@ nominal |
0.1A |
0.1A |
| Stall
current |
3.0A |
5.2A |
| Stall
torque |
350
oz-in |
396
oz-in |
| Nominal
Voltage |
12V
(can be run higher) |
| Gear
ratio |
51:1 |
| Weight |
10.0
oz / 0.625lb |
| Diameter |
1.33" /
34mm |
| Length |
|
| Shaft
diameter |
6
mm - with flat |
| Shaft
length |
16.3
mm |
Dimensions
