0-BHG20 HG20 Geared Motor 20:1 <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">For
years, there has been a void in the realm of conveniently-priced
gearmotors for the 12-15 pound robot weight class. Look no further!
The HG-series gearmotors are beefy enough for the most demanding
15 pound robots, and possibly even more- yet they won't break your
budget! Perfct for directly-attaching your wheels right to the ouput
shaft. Available in three different gear ratios, so you can choose
between a higher speed 20:1, a <a href="0-BHG62.html">higher torque 62:1</a>, or a <a href="0-HG312.html">maximum torque 312:1</a> option.</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The
gearbox has four face-mount M3 threaded holes. Gearbox is offset-shaft,
spur gear type, and is sealed, maintenance-free. </font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These
motors are meant to be run at 12V, but we've tested them to run fine
up to 24V. <br>Please note that the hubs we list below (6mm) will need to be drilled out to 7mm to work with this motor.</font></p>
<table width="100%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td width="31%" rowspan="2" class="main">&nbsp;</td>
<td colspan="2" valign="bottom" class="main"><div align="center"><font color="00ff66"><b><font size="2" face="Arial, Helvetica, sans-serif">HG20
model</font></b></font></div> <div align="center"></div></td>
</tr>
<tr>
<td width="36%" class="main"><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6V</font></div></td>
<td width="33%" class="main"><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12V</font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">No
load speed</font></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">380
rpm </font></div></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">510
rpm </font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Amps
@ nominal</font></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.5A</font></div></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.6A</font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Stall
current</font></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">15A</font></div></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">25A</font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Stall
torque</font></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">240
oz-in (17,282 g-cm)</font></div></td>
<td class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">355
oz-in (25,563 g-cm)</font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Nominal
Voltage </font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">12V
(can be run higher) </font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Gear
ratio</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">20:1</font></div> <div align="center"></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">16.6
oz (470g)</font></div> <div align="center"></div> <div align="center"></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Diameter</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.42&quot; (36mm)</font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Gearbox
Diameter</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1
5/8&quot; (42mm)square </font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">4.0&quot;
(102mm) </font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Shaft
diameter</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">7
mm - with flat </font></div></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Shaft
length</font></td>
<td colspan="2" class="main"><div align="center"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">15
mm (0.59&quot;)</font></div></td>
</tr>
</table>

HG20 Geared Motor 20:1
The HG-series gearmotors are beefy enough for the most demanding 15 pound robots, and possibly even more- yet they won't break your budget! Perfect for directly-attaching your wheels right to the output shaft.

$49.99
Robot MarketPlace - HG20 Geared Motor 20:1

Motors
    Motors - Geared

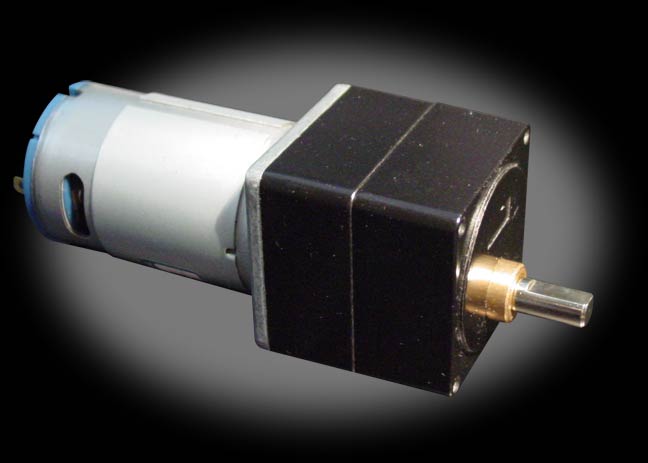

Click photo to enlarge.

HG20 Geared Motor 20:1
Part# 0-BHG20



(average customer rating)

$49.99
This Product Has Been Discontinued
Stock Status: Removed
