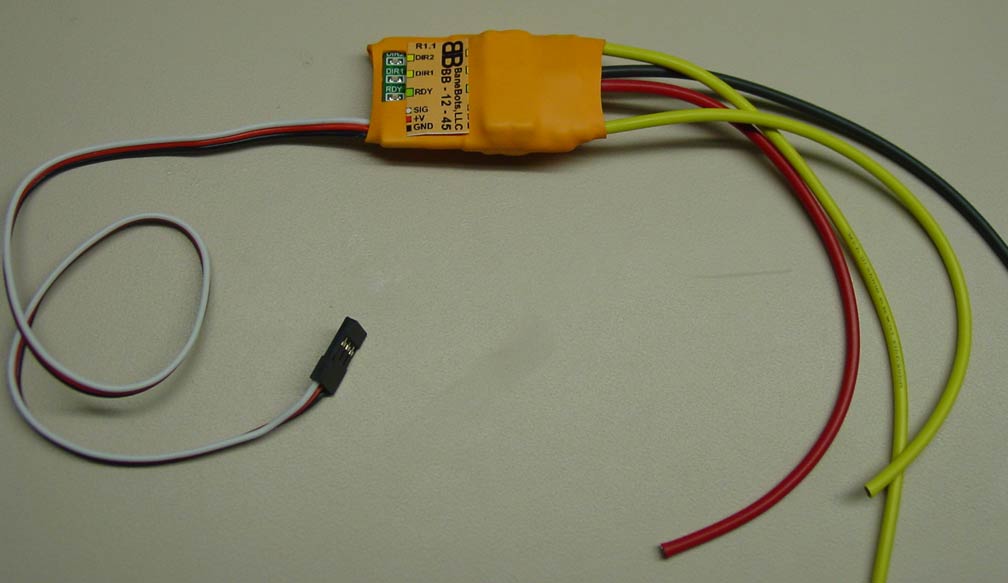

0-BB-1245 BaneBots 12-45 Reversible Brushed ESC <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This is a robust, field proven electronic speed controller for brushed motors with a stall current of around 45 Amps or less.
</font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Specifications<br>
- 45 Amp Peak, 12 Amp Continuous<br>
- Full Current Limit and Thermal Protection<br>
- Proportional Forward and Reverse (no delay), 0-100% PWM<br>
- 6 to 24 Vdc<br>
- Receiver Cable with Universal Plug Installed<br>
- Power/Motor Leads Installed (16 AWG High Strand Count Silicone Wire)<br>
- Size: 1.7" X 1.1" X 0.5" (Including Protective Covering)<br>
- Weight: .93 oz / 26.4 grams (With 12&quot; Cable and 6&quot; Power/Motor Wires)<br>
- 0.5 oz / 14.2 grams (Without Cable/Wires - Reference Only)<br>
- +5 VDC BEC with Over Current, Short Circuit and Thermal Protection<br>
- Neutral signal (center stick) safety start-up when powered on<br>
- Safety shut-down when RC signal is lost with auto recovery<br>
- Motor brake on neutral signal and direction change. Helps protect gears from over stress.<br>
- All FETs are industrial/automotive grade components. Not commercial grade</font><br>
