0-BAN-ECH610 Bantam E-Station BC6-10 Power Max 10A Charger <p> <font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The BC6-10 will get your batteries charged up and ready to go faster than ever with a potential 200W of power output and a charge rate up to 10A. Charges up to 16 cells of NiCd/NiMH and 6S of Lithium batteries with a maximum charge rate of 10.0A.</font></p>

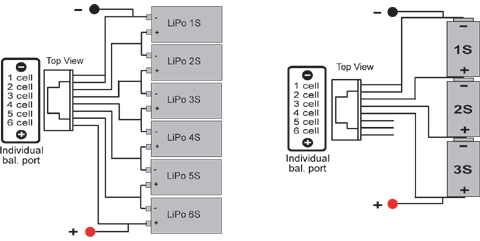

<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Balances and Charges your lipos<br>
The BC6-10 has an individual-cell-voltage balancer built in, so you won't need an external balancer when charging Lithium batteries (Li-Ion/LiPo/LiFe).</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"> Balances individual cells during discharge<br>
The BC6-10 also can monitor and balance individual cells during the discharge process. If the voltage of any one cell varies abnormally, the process will stop an error message will appear.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Charges several types of lithium batteries<br>
The BC6-10 charges three types of Lithium batteries - LiIo, LiPo and LiFe. Safely charges any of these battery chemistries.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Lithium battery 'Fast' and 'Storage' modes<br>
'Fast' charge reduces the charging time of Lithium batteries and 'Storage' mode controls the final voltage of the battery for long-term storage.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Data store/load<br>
The BC6-10 stores information about up to 10 batteries in its internal memory. Each battery's info can be recalled at any time, saving you time in reprogramming.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cyclic charging/discharging<br>
Perform 1 to 5 cycles of charge and discharge to keep your batteries refreshed and balanced.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">PC based analysis through USB port<br>
For advanced users, the BC-6 offers an optional <font color="ff0000">FREE</font> PC-based program that can analyze your battery via a USB connection. It shows a graph of voltage, current, capacity and temperature curves. It also shows the individual voltage of each cell in your pack. <font color="ff0000">The <a href="0-BAN-EAC400.html" target="_top">USB Module and Cable Kit</a> is required.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Tough aluminum outer case<br>
High-quality aluminum case is durable and helps the charger cool efficiently.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Operating Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">11V-18V DC </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Circuit Power </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Max. 200 watts (charging); max 25 watts (discharging) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Charge Current Range </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.1 - 10.0 amps </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Discharge Current Range </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.1 - 5.0 amps </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Current Drain for Balancing LiPo </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">200mAh/cell</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Number of NiCad/NiMH cells </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1-18 cells </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Number of LiPo cells </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1-6 cells </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Pb Battery Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2-24V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">960g</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimensions</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">160 x 120 x 40 mm </font></td>
</tr>
</table>
