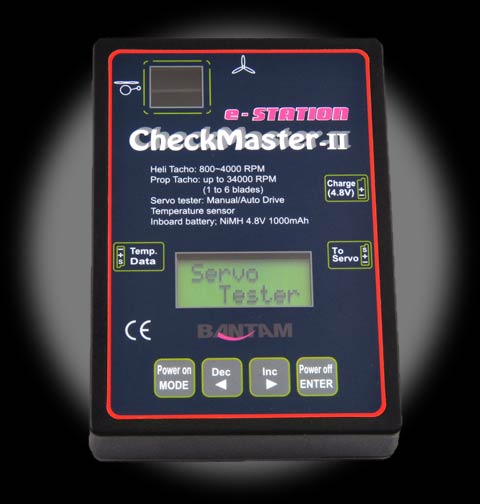

Robot MarketPlace - Bantam E-Station Checkmaster II

Precision pulse generator to test servos
You can test any brand of servo by movement, deflections, neutral point and band width. It does not need battery to operate servos. It shows the electric current to operate the servo simultaneously. This feature is very helpful to choose an appropriate RX battery for your model by adding all current load of servos.

Propeller tachometer
Precision optical tachometer up to 6 blades and 34000RPM. Up to 10 incidental RPM can be stored to the memory.

Rotor blade tachometer
Precision tachometer up to 4000RPM. Rotating-drum type slit syncronize system. Up to 10 incidental RPM can be stored to the memory.

Temperature sensor
Solid-state temperature sensor by contacting the material being checked.

Back-light LCD screen
You can adjust the brightness of LCD display.

Automatic power off and back-light off
To prevent from wasting the energy, the power will go off when there is no action for 10 minutes. The back-light will go off in 1 minute if you do nothing with the unit.

Specs
Servo Tester	ATV 10-100% 900 - 1500 - 2100us
Prop RPM Tachometer	Up to 34000 RPM 1 to 6 blades 10 data memories
Rotor Blade Tachometer	800-4000RPM 10 data memories
Temperature Sensor	0 to 120 degree C
On-board Battery	1000mAh 4.8V NiMH
Weight	7.4oz (210g)
Dimensions	3.15 x 4.45 x 1.10 in. (80 x 113 x 28mm)
