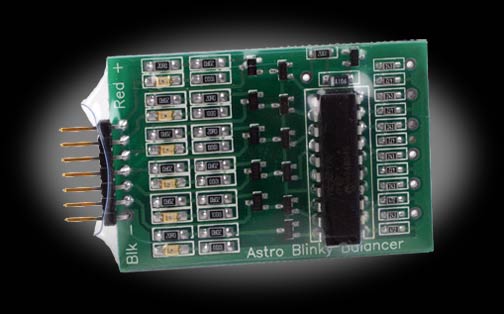

This Battery
Balancer is specially designed for A123 Lithium Ion Batteries. The balancer accepts
one to six cell battery packs.
- Now you can see if all
cells are above 2.8 volts before charging.
- Now you can Balance
your pack while you are charging.
- Now you can Balance
your pack after you are finished charging.
- Now you can Discharge
individual cells that are over charged.
- Now you will know that
your batteries are balanced.
Connector has 0.100 in
pin spacing with 0.025 square pins and fits Apogee and other brands. Pins should be in order of voltage. For example on a 3 cell pack black = negative, 1st white = 3.6 volts, 2nd white = 7.2 volts, red = 10.8 volts. There should be no gaps or missing pins in the sequence.
User's Guide
