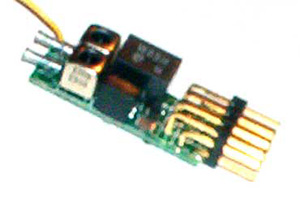

This is a small 6 gram, 4 channel, Universal FM/PPM micro receiver that uses standard 75MHz single conversion crystals. (Crystals not included). Perfect for US Ants (1lb.)

Key Features:
Universal transmitter compatibility. (Futaba, JR, Hi-Tec, Airtronics - Not compatible with some Pistol Style Radios)
Superior reception range. (over 1500 ft.)
Uses common 75MHz single conversion crystals.
Lightweight small construction and a flat design that saves space in your Ant-Weight.

Specifications:
Dimensions: 10 x 32 x 12 mm
Weight: 6 grams
Channels: 4
Range: 500 meters (over 1500 ft.)
Modulation: FM or PPM
Power: 3.5 - 7 volts
Connector: standard 3-pin (universal)
Signal shift: automatic, accepts (+) and (-) shift
Tuner Type: single conversion, narrow band
Plug Type: "S" connectors, universal for (Futaba, JR, Hitec, Airt-Z)
Compatibility: any FM or PPM transmitter

Important Info:
For Futaba systems, use only single conversion crystals that match your 75MHz transmitter (JR crystals work fine). Do not reverse polarity of the power source. Any channel can be used as battery input. Do not use outside the voltage range. Do not short input/output pins or pc board. Do not coil antenna (reception loss occurs). Trimming the antenna reduces range. Use a Deans base loaded antenna for best results.
