0-70097 Twin Motor Gearbox - Tamiya 70097 <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">A popular, inexpensive, all-in-one solution for your Antweight's drive system. Includes two independantly-controlled sides, each with it's own FA-130 motor and gearbox, all under 2.5 ounces! Some assembly required.</font></p> <p align="left"> <font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">75 x 24 x 34mm<br> 105mm shaft (3mm hex)<br> Weight: 2.5oz<br> Current: 0.5A (each motor) @ 3V<br> Ratios are: 58:1 and 204:1<br> RPM: 230 and 65 @ 3V<br> Torque (oz-in): 29 and 102 @ 3V<br> </font></p>

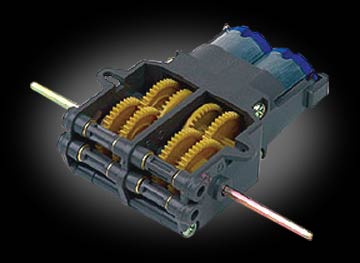

Robot MarketPlace - Twin Motor Gearbox - Tamiya 70097
inexpensive, all-in-one solution for your Antweight's drive system.
Includes two independantly-controlled sides, each with it's own FA-130
motor and gearbox, all under 2.5 ounces! Some assembly required.
x 24 x 34mm
105mm shaft (3mm hex)
(each motor) @ 3V

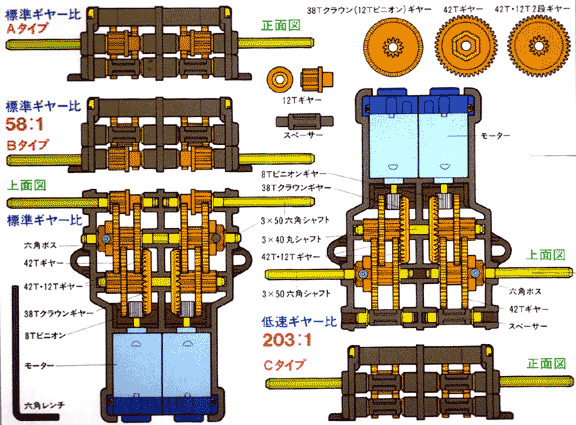

Ratios are: 58:1 and 204:1
RPM: 230 and 65 @ 3V
Torque (oz-in): 29 and 102 @ 3V
I like it because it is good for small robotic projects
great (small) gear box, first order from Robot market place, very pleases, arrived within four days, I got two for a robot, the first half of the first gear box took me 30 min to build, but then from there ten o the second half, and 10 on the entire second one, I will defenily order this again, and for robot market place, best robot sight ever!!!
Very pleased with my twin motor's.
Fantastic this kit I used this kit to join with another wheel kit with mats. This gearbox is very good, easy to assemble and simple, it had two modes of assembly, slowly with more force or less force fast ... rode like I wanted ... I recommend this kit
this kit is very good, I loved
Easy to assemble, easy to understand how it works ... I loved this kit, I want to buy this
Fantastic! What an amazingly well designed product. Fun to assemble, very reasonable price. Works like a dream. Thanks for having it!
A good introduction to the drivetrain
I used this gearbox to build my very first robot. (actually, the gearbox came with another product, which I will also review) I have no complaints, other than the fact that I don't know how well the gears will do in a combat setting! Anyhow, there were no kinks, and it was very easy to use. If you are new to robotics, it would be a good idea to use this product as a tutorial on locomotion.
this is a good kit for small projects, the motors consume just few energy and have a good power with that transsmision
This is a perfect solution for first-time robot builders. Two motors and two gearboxes, isolated from each other but physically connected in one unit. The hex shafts fit perfectly with several of the Tamiya wheels sold here. This gearbox has been performing well in many antweight robots.
i used this gearbox for a while but the gears stripped out so i would not call it my first choice for sure but might be ok for a beginer
