Item #: 276-1957
UPC: 807648019575
Price: $19.99
    Points to Purchase: 2856
    Availability: Temporarily Unavailable notify me

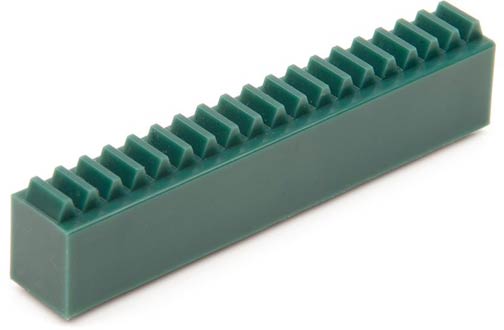

    Rack gears can be used to turn rotary motion into linear motion.

    Use any VEX spur gear as a pinion to drive these rack gears.
    Stack multiple rack gears back to back for longer motions.
    Combine these with a VEX linear slide and Rack Gear Bracket (sold separately) to create a simple linear actuator.
    Each Rack Gear includes (3) 6-32 threaded inserts on their back face. Mount these similar to VEX motors or servos with 6-32 screws.

    Kit Contents 16 19-tooth Rack Gears
    CompatibilityMates with all VEX Spur Gears
    Material Type Delrin
    Size2.50 in. (63.5mm) long
    Weight0.020 lbs (actual weight of one item, no packaging)

    0-276-1957


    STEP File
